Computer implementation > Measurements page > ADC measurements > DAC-ADC test mode

This mode is intended for check-up of the measuring complex in the absence of real measuring devices or sensors. The stages of mode execution: transmission of the sample digital modelling signal on DAC channel, transformation to the analog form, transmission on ADC channels and pickup from ADC channels. For realization of this mode you need to connect DAC outputs and ADC inputs according to the following scheme.

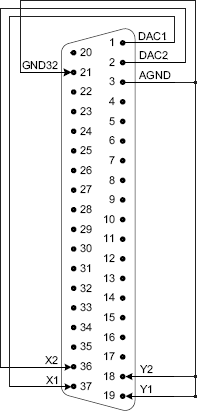

The scheme of connections for DAC-ADC test mode

Actions user

To start test procedure execute the action "Test mode DAC->ADC" on the panel named "ADC measurements" of the measurements page.
