The Info panel is a graphic container for the diagrams of physiological curves, obtained during the modelling. In contrast to the panel of monitoring, the Info panel is used to display "slow" curves, which don't change much during the one cardiac cycle. They are: the heart rate, the minute volume and other "integral" values of blood circulation system.

Each curve in the container can be made active by mouse click. The active curve become rubricated.

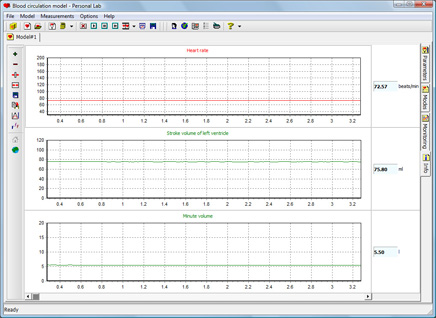

The Info panel

The panel contains the following set of actions.

The action "Add new monitoring curve" activates the dialog panel of curve choice to add it into the graphic container for visualization.

The action "Delete monitoring curve". By click you delete the chosen curve from the container.

The action "Monitoring parameters" activates the dialog panel of choice of display parameters. The time interval of curve display and etc. are usually being chosen.

The action "Narrow view" is intended for the increase of the time interval of curve display, that leads to squeezing of curve image.

The action "Expand view" is intended for the reduction of the time interval of curve display, that leads to expansion of curve image.

The action "Save image" is intended for the saving of image of the graphic curve container into a file of one of the graphic formats (BMP or JPEG) or into SQL database.

The action "Copy" is intended for copyng of image into clipboard.

The action "Font setup" is intended for the selection of one of the system fonts to sign the curve names in the graphic container.

The action "Default Web page" is intended for the load of root Help page.

The action "Show Web page" turns on/off the mode of Help page display in the right half of the modelling page.
